ML Dataloader Benchmarks

Homeobox is designed to serve PyTorch training loops directly out of its zarr-backed atlas. To make throughput claims meaningful, we compare it against commonly used dataloaders in both local and remote settings. The current benchmarks focus on single-cell gene expression data; other modalities (e.g. images) will follow.

Scripts and methodology were adapted from SLAF.

DISCLAIMER: Fair comparisons between dataloaders are hard — shuffling semantics, worker models (multiprocessing vs prefetching threads), remote support, in-memory caching, and per-system tuning all vary. We publish the scripts so anyone can re-run on their own systems and datasets.

---

Metrics

We measure sustained cells per second delivered to the training loop after a per-system warmup. Memory is recorded as peak RSS across the benchmarked process and its spawn children, sampled at 10 Hz.

Throughput is what training loops care about: a model step cannot start until the next batch is materialised, so the dataloader's steady-state rate caps epochs per wall-hour.

We deliberately do not measure:

• First-batch latency — irrelevant for long training runs and dominated by import / open / mmap costs nobody optimises hard.
• GPU-side preprocessing — systems disagree on what counts as a batch (CSR vs dense vs tokenized), so we stop at "raw data delivered to Python."
• Cold-disk read rates — see page-cache priming.

---

Dataset

The suite uses two synthetic datasets, generated with deterministic seeds so a sweep can be reproduced bit-for-bit. The throughput dataset is sparse counts at atlas scale, run under both local and remote storage. The perturbation dataset is smaller and targets the random-read pattern of single-cell perturbation training.

Throughput dataset (local + remote)

All local and remote throughput runs read the same synthetic dataset, generated once by benchmarks/make_synth_dataset.py and converted into each system's native on-disk format:

Property	Value
Cells	1,000,000
Genes	20,000
Density	7%
Non-zero entries	~1.4 billion
Values	uint32 counts, drawn from 1 + Geometric(p=0.3)
Total on disk	~32 GB across all formats

Each system reads its own copy, generated from the same underlying CSR shards. On-disk sizes vary by an order of magnitude — the same logical 1M × 20k × 7% matrix is 2.5 GB in homeobox's bitpacked sharded zarr vs 11.3 GB in zstd-compressed h5ad. This shows up implicitly in page-cache pressure and remote byte-rate ceilings.

Path	Reader	Size on disk
atlas/	Homeobox RaggedAtlas	2.5 GB
slaf/	SLAF (Lance)	3.6 GB
h5ad/synth.h5ad	scDataset, scvi-tools AnnDataLoader, anndata.experimental.AnnLoader	11.3 GB
scdl/	BioNeMo SingleCellMemMapDataset	8.4 GB
annbatch/dataset_*.zarr	annbatch	3.0 GB
tiledbsoma/	TileDB-SOMA Experiment	2.9 GB

Copies of the formats that support remote stores (Homeobox, SLAF, annbatch, TileDB-SOMA) were uploaded to S3 for the remote sweep.

The synthetic distribution matches the shape of single-cell count data (sparsity, integer counts, geometric tail) but imposes no biological structure.

Perturbation dataset (group-aware random reads)

A separate dataset, built by benchmarks/make_perturbation_synth.py, targets the random-access workload in single-cell perturbation training: each batch contains cells from one (cell_type, gene) group, so the dataloader materialises scattered rows rather than a contiguous slice.

Property	Value
Cells	1,000,000
Features (HVG embedding)	2,000
Cell types	10 (one shard each)
Perturbations	50 (49 + 1 non-targeting control)
Groups	500 × ~2,000 cells per (cell_type, gene)
Values	float32, drawn from Normal(0, 1) (embedding-like, dense)
Total on disk	~22 GB across both views

Path	Reader	Size on disk
atlas/	Homeobox RaggedAtlas with a group sampler	7.0 GB
cell_load/synth/CT*.h5	cell-load (one AnnData per cell type)	15 GB

Cells are deliberately shuffled within each shard before being written. Real perturbation experiments don't store cells contiguously by (cell_type, gene); without the shuffle, both backends would degenerate to sequential reads within a batch and storage-layout differences (zarr chunks, HDF5 dataspace ordering) would be hidden.

Only two systems target this workload: Homeobox-Map (random row reads via BatchArray + a group-aware batch sampler) and cell-load (the Arc Institute perturbation loader, designed for this pattern). The other throughput-suite systems don't support group-aware batching out of the box. The perturbation sweep is local-only because cell-load can't read from remote storage.

---

Systems compared

Homeobox-Map vs Homeobox-Iter

Homeobox exposes the same on-disk atlas through two PyTorch dataset surfaces, and we benchmark them as separate systems because the trade-off between them is the central design point of homeobox as a dataloader. Both shuffle the full atlas uniformly at random each epoch — the difference is the unit of I/O, not the access pattern:

• Homeobox-Map is a torch.utils.data.Dataset with __getitem__(indices). Each training batch is one RustShardReader call for batch_size shuffled rows. Any sampler works — including non-permutation ones (group-aware, fine-grained subsetting, custom).
• Homeobox-Iter is a torch.utils.data.IterableDataset that requests io_batch_size=65,536 shuffled rows per reader call and slices training batches out of an in-memory queue filled by a background prefetcher. Reads are still scattered, but each Python/Rust round-trip pulls 65k rows instead of batch_size, so per-call fixed cost amortizes and the reader has more indices to coalesce. The cost: the sampler is fixed to "permutation, sliced into blocks" — group-aware samplers don't apply.

In short: Map trades speed for sampler flexibility, Iter trades sampler flexibility for speed. As batch_size grows, Map's per-batch fixed cost amortizes and the gap narrows — see Results.

Systems table

System	Library	What it reads
Homeobox-Map	homeobox (SUT)	Sharded zarr via RustShardReader, CSR SparseBatch, map-style with scattered per-cell reads per batch
Homeobox-Iter	homeobox (SUT)	Sharded zarr via RustShardReader, CSR SparseBatch, iterable with a 65k-row prefetched I/O block (scattered indices under shuffle, not on-disk contiguous)
SLAF	slaf	Lance dataset, raw CSR
scDataset	scdataset + anndata	Backed .h5ad via AnnCollection
AnnDataLoader	scvi-tools	Backed .h5ad
AnnLoader	anndata.experimental	Backed .h5ad
BioNeMo SCDL	bionemo.scdl	SingleCellMemMapDataset (memmap)
annbatch	annbatch	Zarr shards, optional zarrs codec
TileDB-SOMA	tiledbsoma_ml	TileDB-SOMA Experiment (sparse)
cell-load	cell_load	PerturbationDataModule (dense)

Capability matrix

Beyond raw throughput, these systems differ in what they can do at all. The table frames the throughput numbers in context — a system that can't read from S3 isn't directly comparable to one that can, even if local-disk numbers look similar.

System	Map-style[^map]	Remote storage	Training-only format[^tof]	Versioned snapshots	Ragged features[^rag]
Homeobox-Map	✓	✓	–	✓	✓
Homeobox-Iter	–	✓	–	✓	✓
SLAF	–	✓	–	✓	–
scDataset	–	–	–	–	–
AnnDataLoader	✓	–	–	–	–
AnnLoader	✓	–	–	–	–
BioNeMo SCDL	✓	–	✓	–	–
annbatch	–	✓	✓	–	–
TileDB-SOMA	–	✓	–	✓	–
cell-load	–	–	✓	–	–

Torch-worker support varies across systems but the rules are too noisy for a column — see the per-system breakdown below.

num_workers support

Not every system accepts torch-style multi-process workers. The sweeps auto-skip those rather than running num_workers > 0 as a duplicate num_workers = 0 measurement under a different label:

System	num_workers > 0
Homeobox-Map	✓
Homeobox-Iter	— internal multithreaded prefetcher; running on top of DataLoader workers would double up
scDataset	✓
BioNeMo SCDL	✓
cell-load	✓
SLAF	— manages its own scanner threads (n_scanners)
annbatch	— own threaded preloader, no num_workers argument
AnnDataLoader, AnnLoader	— backed-h5ad pickling is unreliable across workers
TileDB-SOMA	— ExperimentDataset rejects num_workers > 0 with return_sparse_X=True (pytorch/pytorch#20248)

Systems in the second group contribute only the num_workers = 0 rows; plots showing scaling with num_workers only carry curves for the first group.

[^map]: Map-style means the dataset exposes __getitem__(idx) so PyTorch's DataLoader can dispatch any index to any worker independently. Iterable systems run a single producer that fans batches out — their multi-worker scaling depends on partitioning, not on worker-side parallelism.

[^tof]: Training-only format means the data must be re-materialised into an on-disk layout that exists exclusively to feed a training loop. A ✓ here is a cost, not a feature: you maintain two copies of the data, and the training copy can't be queried or inspected with the same tools as your analytical store.

[^rag]: Ragged features means datasets with different feature sets (different gene panels, additional modalities) can coexist in the store without padding to a union or intersecting to common features. Most systems require feature alignment upfront.

---

Hardware and software

Component	Value
CPU	Intel Xeon 6975P-C, 8 physical cores
RAM	~130 GB
Storage	Local NVMe SSD (ext4)
OS	Ubuntu 24.04
Python	3.13
PyTorch	from the homeobox [ml] extra

The dataset fits entirely in page cache (~30 GB vs. ~130 GB RAM), see below.

---

Page-cache priming

The first time a benchmark process reads a system's files, it pays cold-disk latency that has nothing to do with loader design. The second time, the data is in the Linux page cache and reads run from RAM. The full dataset (~30 GB) fits comfortably in cache (~130 GB), so the realistic sustained-training scenario is the warm one — every epoch after the first hits cache.

We do not drop the page cache between reps — it would require root, and a cold-disk benchmark is a different experiment (a disk benchmark, not a dataloader benchmark). Reported numbers are post-priming.

---

Results

All numbers below come from the reference hardware (Hardware and software) with the page cache primed. Throughput is sustained cells/sec at steady state. Figures average over whatever reps are in the CSV; current snapshots are single-rep, so markers and tables match raw measurements one-for-one.

The recurring theme across all three sections is the Homeobox-Map ↔ Homeobox-Iter trade-off. Both shuffle the atlas uniformly at random; Map asks for batch_size rows per Rust-reader call, Iter asks for 65k. The gap between them is a direct measure of the per-call fixed cost Map pays for sampler flexibility. It shrinks as batch_size grows: larger batches amortize per-batch overhead and give the reader more indices per call to coalesce — both of which Iter gets for free.

Local — throughput on NVMe

All systems, num_workers ∈ {0}, all three batch sizes.

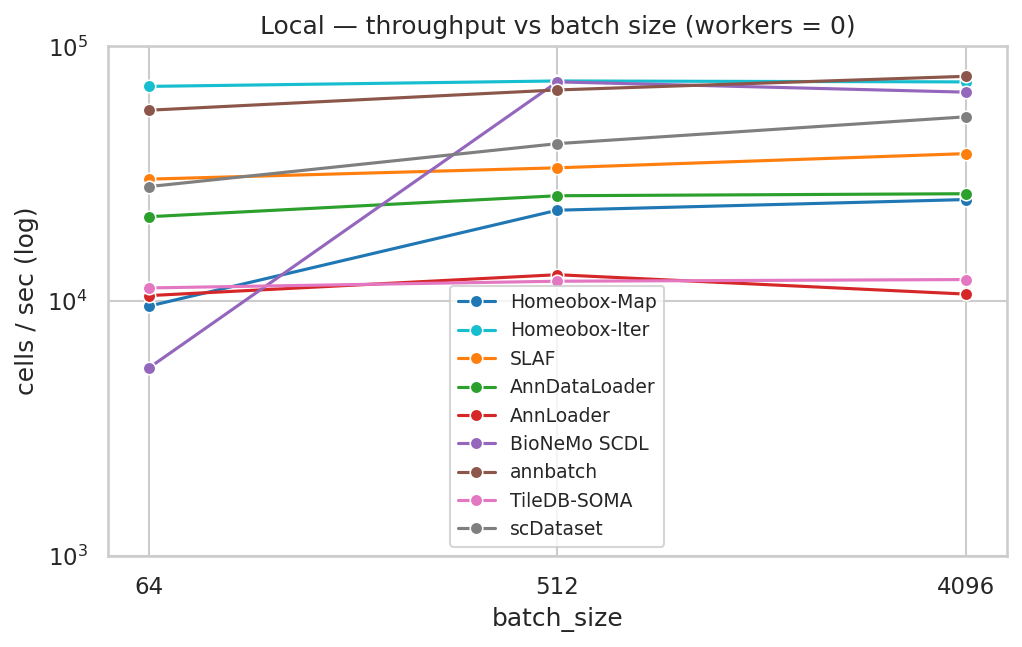

Throughput (cells/sec, workers=0, single rep):

System	b=64	b=512	b=4096
Homeobox-Iter	69,658	73,171	72,548
annbatch	56,154	67,459	76,314
BioNeMo SCDL	5,455	72,570	66,124
scDataset	28,151	41,525	52,923
SLAF	30,118	33,374	37,940
AnnDataLoader	21,446	25,926	26,403
Homeobox-Map	9,553	22,749	25,049
TileDB-SOMA	11,268	11,972	12,153
AnnLoader	10,509	12,699	10,656

Three things to notice:

1. Homeobox-Iter saturates the reference NVMe at ~70k cells/sec and is flat across batch sizes — once the prefetcher is in steady state, training-loop batch size doesn't matter: the I/O unit is the 65k-row block and training batches are sliced from a warm queue. The only systems that get close are annbatch (chunk-prefetching zarr) and BioNeMo SCDL at large batches (memmap with bulk slicing).
2. Homeobox-Map's gap to Iter narrows sharply with batch size. At b=64 Iter is 7.3× faster (69,658 vs 9,553); at b=512, 3.2× (73,171 vs 22,749); at b=4096, 2.9× (72,548 vs 25,049). Exactly the predicted amortization: at large B, Map's per-batch fixed overhead is divided over more rows, and the reader coalesces more zarr ranges per call — which is what Iter does all the time.

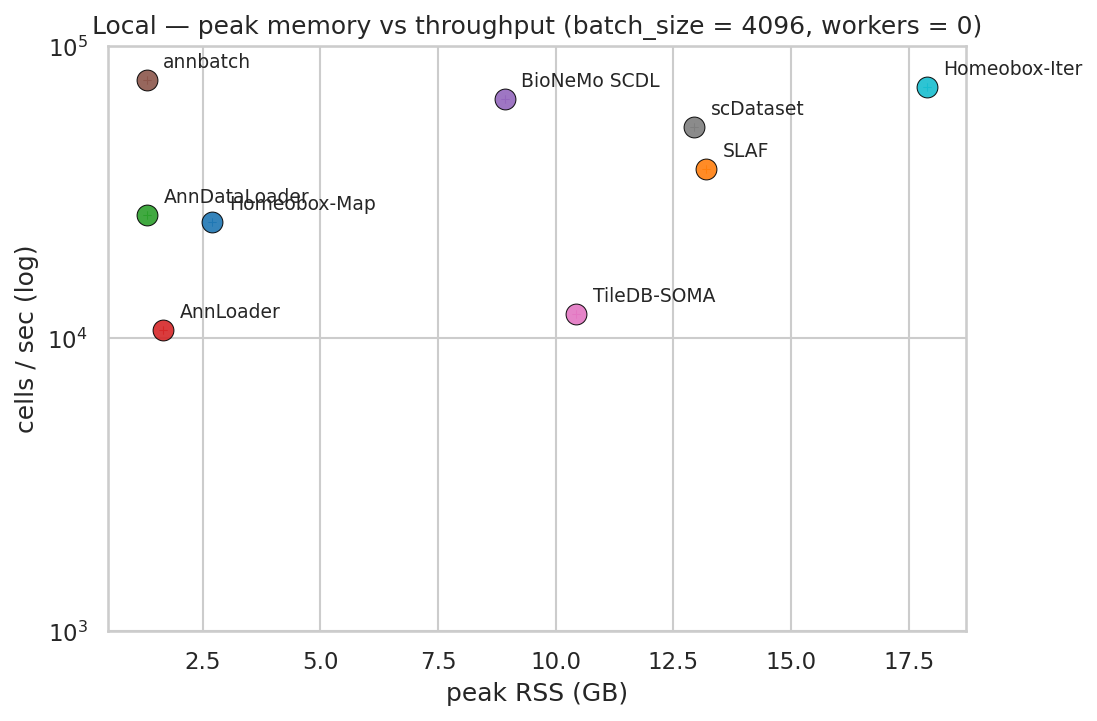

On memory: Homeobox-Map sits in the low-RSS cluster (~1–3 GB at b=4096, workers=0), comparable to annbatch and AnnDataLoader. Homeobox-Iter pays ~18 GB peak for its in-memory prefetch queue — the trade-off is explicit. BioNeMo SCDL and TileDB-SOMA dominate the memory axis (~9 and ~10 GB) without buying corresponding throughput.

Remote — same atlas served from S3

Only systems whose readers speak object-store URIs appear here: Homeobox-Map, Homeobox-Iter, SLAF, annbatch, TileDB-SOMA.

Throughput (cells/sec, workers=0):

System	b=64	b=512	b=4096
Homeobox-Iter	40,378	42,344	41,453
SLAF	3,611	4,233	10,320
TileDB-SOMA	5,873	5,845	5,945
Homeobox-Map	576	1,884	3,300
annbatch	1,050	1,314	1,594

S3 latency turns the Map ↔ Iter trade-off from a 3–7× gap into a 12–70× gap. Each Map batch issues B obstore GETs against S3, and per-request RTT (~10–20 ms) dominates the byte transfer. Iter still does scattered reads, but at 65,536 indices per call it coalesces co-located indices into fewer GETs, overlaps many in-flight requests against the same RTT budget, and decodes ahead of the consumer in the prefetcher. The amortized fixed cost is the same as locally; remote storage just makes it an order of magnitude larger, so the gap widens correspondingly.

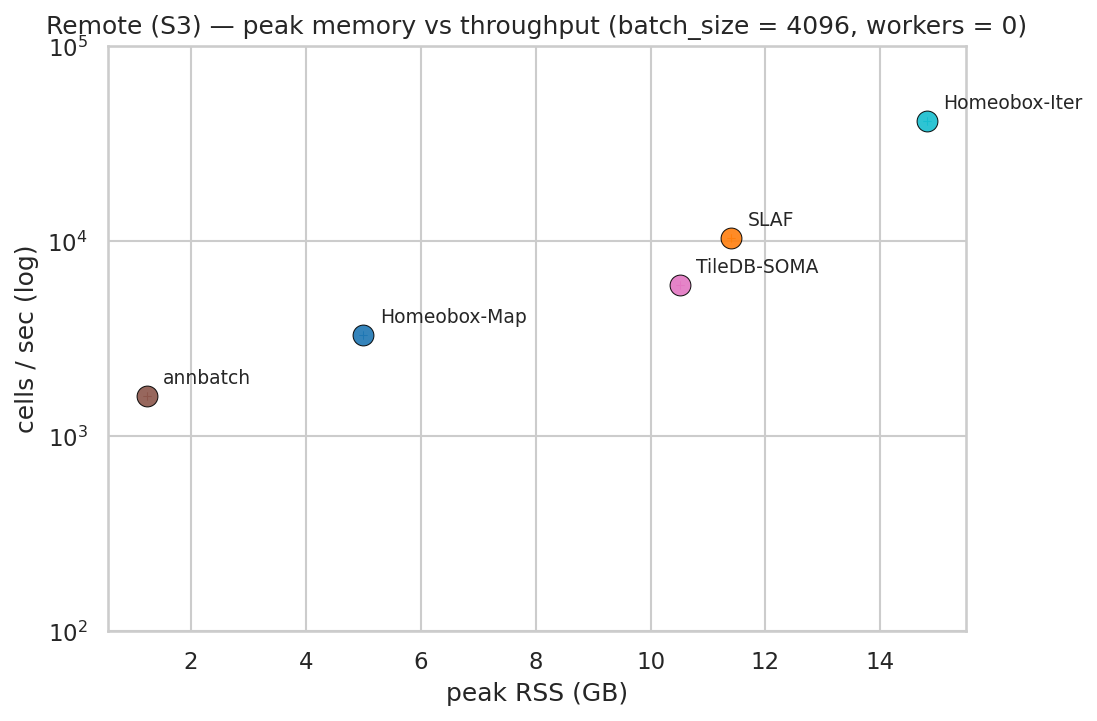

Memory looks similar to local: Iter trades ~15 GB peak RSS (prefetch queue) for an order-of-magnitude throughput advantage; Map sits near the bottom of the memory axis.

Perturbation — group-aware random reads

Each batch is B cells drawn from a single (cell_type, gene) group on the perturbation dataset. Only Homeobox-Map and cell-load appear — no throughput-suite system implements a group-aware sampler, and Iter can't serve this workload because the access pattern requires __getitem__.

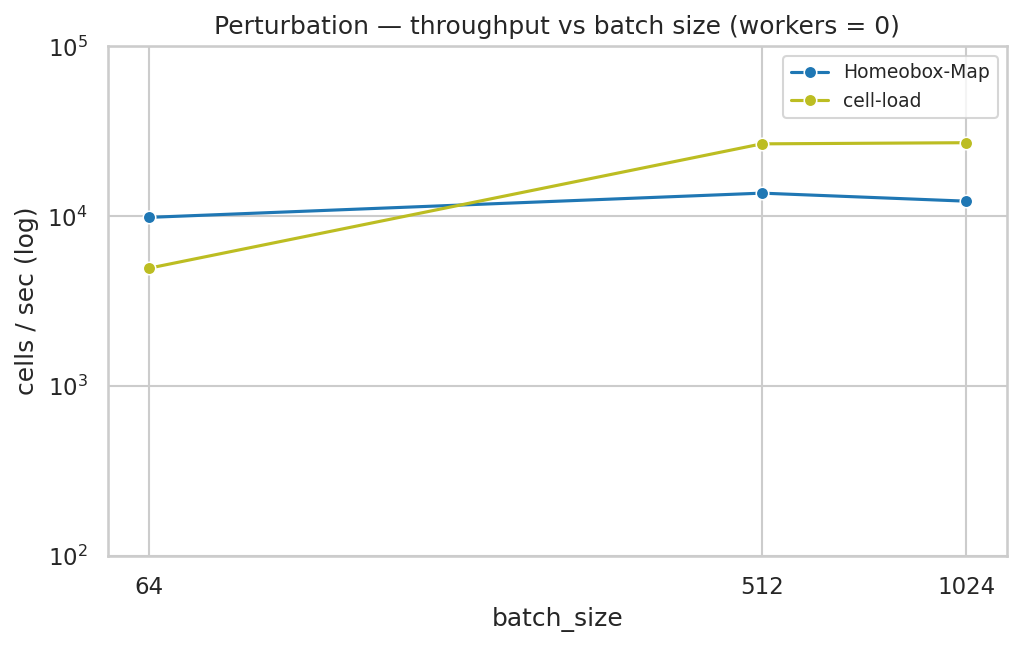

Throughput (cells/sec, workers=0):

System	b=64	b=512	b=1024
Homeobox-Map	9,842	13,677	12,265
cell-load	4,936	26,678	27,096

The crossover at b≥512 is the locality story: a single-group batch in cell-load maps to a contiguous-ish region in one cell-type-specific .h5 (one large HDF5 read), whereas Homeobox-Map issues B independent zarr range reads regardless of batch construction. At b=64, per-batch fixed cost dominates cell-load's HDF5 open/seek path and Map wins by ~2×; at b≥512, cell-load's bulk-read advantage takes over and it pulls ahead by roughly the same factor.

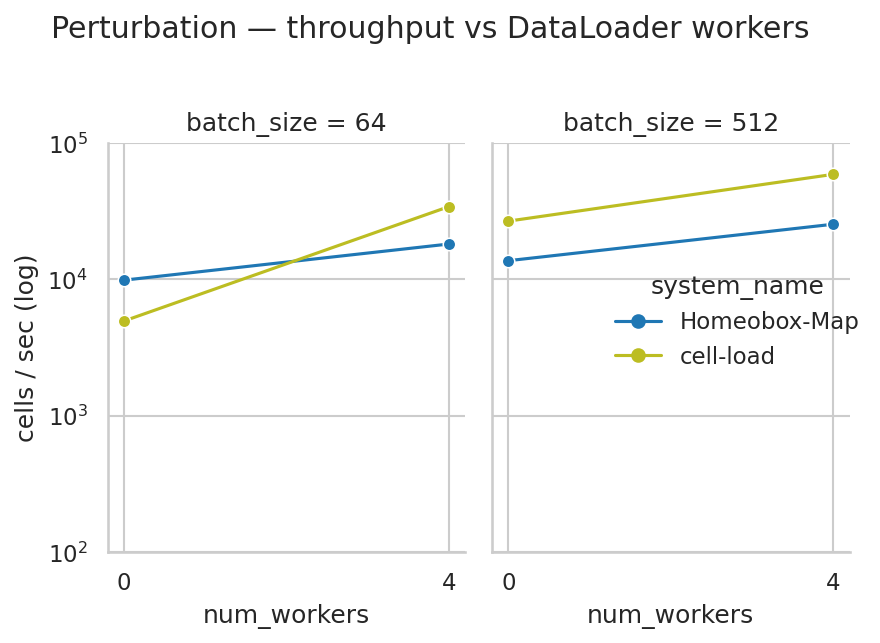

At num_workers=4 both systems roughly double, preserving the ordering: cell-load at 34–59k cells/sec, Map at 18–25k cells/sec.

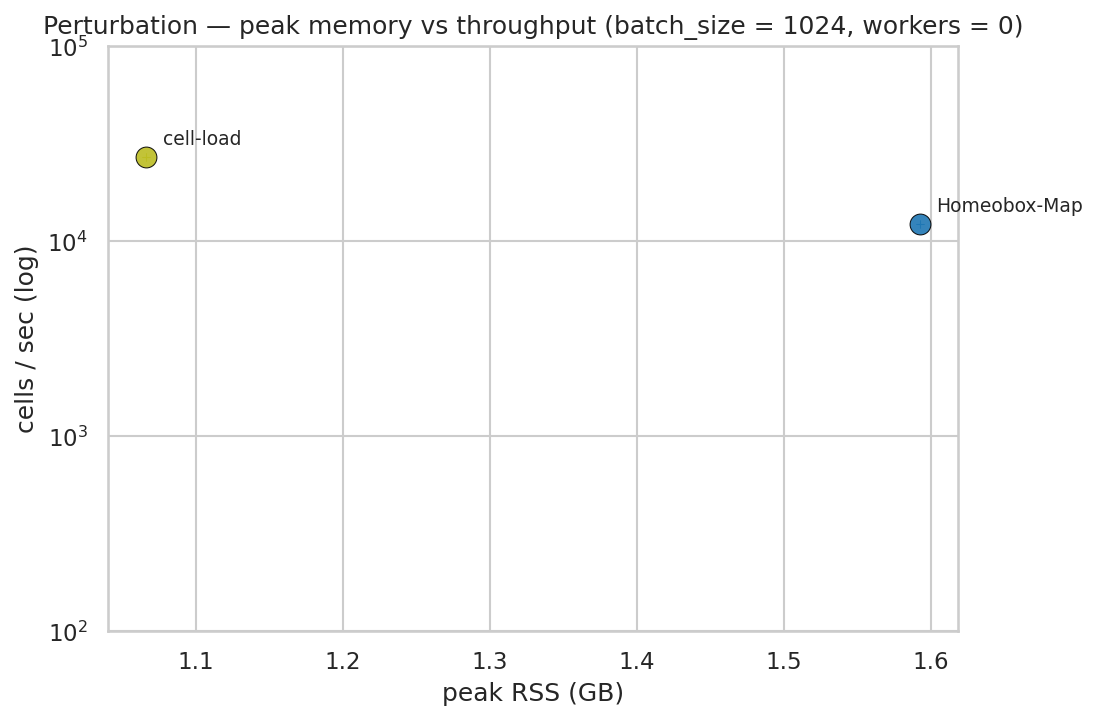

Memory is comparable at the largest batch (cell-load ~1.1 GB, Map ~1.6 GB at b=1024, workers=0). This benchmark isn't here to show Homeobox-Map "wins" — at large batches on this workload it doesn't — but to quantify the cost of one specific flexibility: arbitrary __getitem__ over the atlas, with no second on-disk copy and no per-cell-type sharding requirement. For sustained large-batch group reads on a single dense embedding modality, cell-load's specialized format is faster; if you also need random access, multi-modal queries, ragged features, or remote-store reads, Homeobox-Map serves all of those from one atlas.
